Digital plate thickness gauge.

The plate thickness gauge is a fast and accurate method of measuring metal plate to manufacturers supplied tolerances , sample of sheet metal is inserted between the fixed and moving anvils, constant measuring pressure guarantes repeatability to eliminate errors.

Plate thickness gauge can be used as an independent stand alone gauge using the dial gauges digital readout.

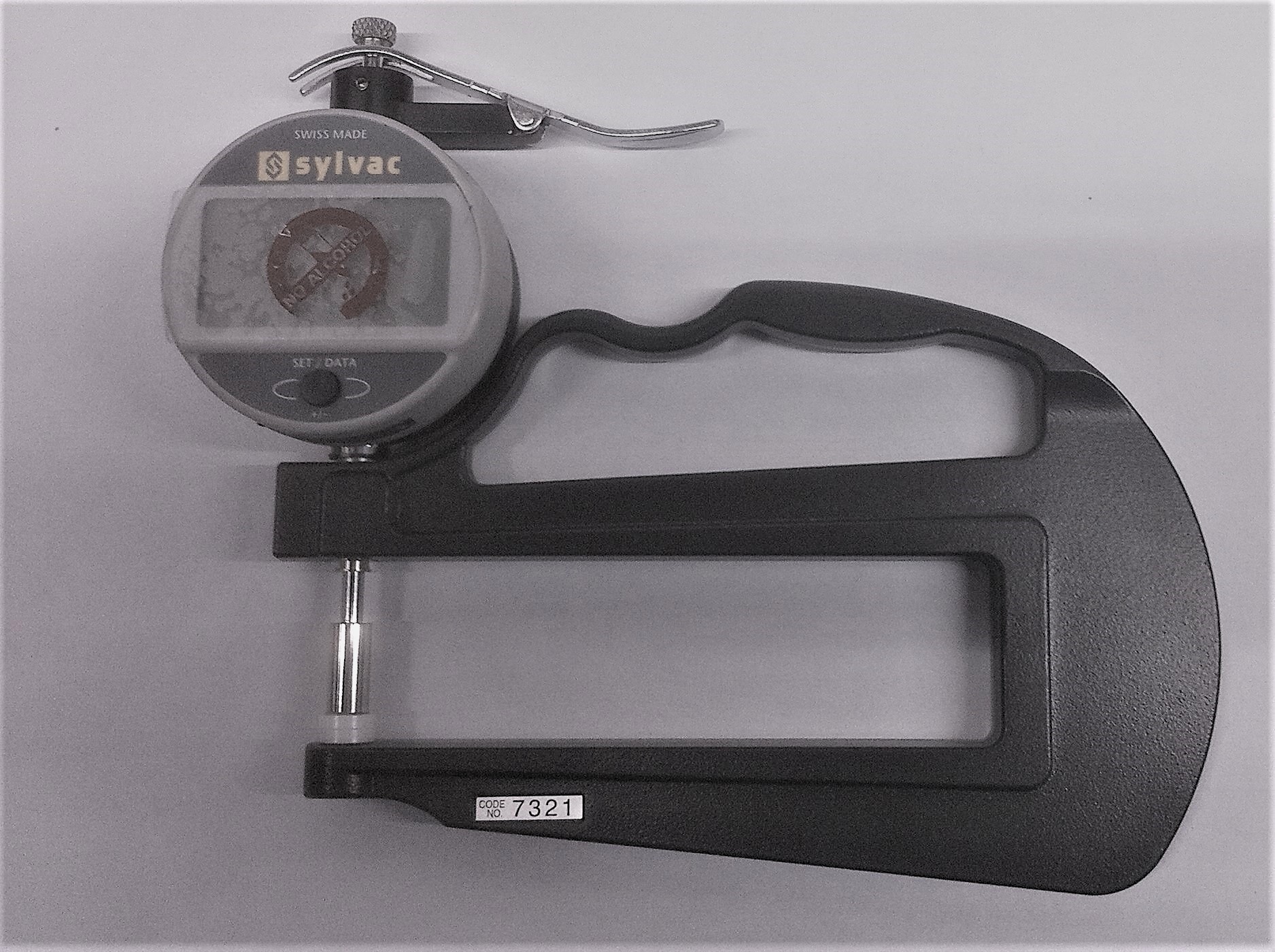

Plate thickness gauge shown has a large 8.5 mm digital display with direct RS232 output and reading can be automatically transferred to our statistical process control Microseam Inspection Software via an optional OPTO-RS data cable with a USB 2 computer interface.

Model shown has, mode button allows unit to be set to desired measuring format metric or imperial, with preset, memory hold and 2 memories Ref 1 / Ref 2 and top lifting arm.

Resolution available; 0.01mm, 20 microns.

Other manufacturers dial gauges c.an be supplied with frame upon request.

No operator training required..

A pproximate weight: 0.75 Kg (1.65 lbs)
