Can Seam Inspection Equipment by

Longueville, Pound Lane, Smeeth, Ashford, Kent. TN25 6RJ. England

Tel: +44 (0)1303 813200 Mobile 07776 251493 E-mail: stevegoble@arundle-optical-instruments.com

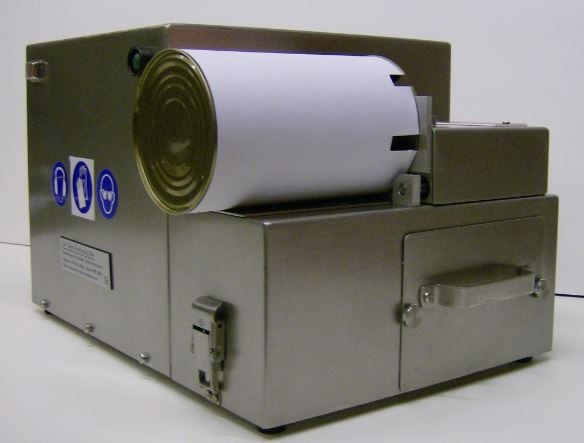

Food Can Seam Sectioning Saw.

Seam sectioning saw for steel food cans.

Designed with a 10 mm thick base plate and a large powerful motor the food can saw provides an extremely stable cutting platform, using a 550 watt motor utilizing 8 Newton meters of shaft torque to run two M35 H.S.S.100 mm diameter by 0.50 mm thick high speed saw blades at high speed, to cleanly cut the can to expose a cross section of the finished can.

Unit has ramped acceleration for almost instantaneous starting.

Seam sectioning saw is supplied with a single seam fixture or Vee-guides ( customers choice as standard ).

Saws bespoke manufactured to customers specifications, i.e. wider tables or different cut widths to suit other viewing instruments.

Features include.

Dual control, operator must employ both hands at all times.

Removable waste cutting material tray with safety cut out, activated whenever the tray is removed.

Can detection proximity sensor.

Ultra low control circuit.

Earthed to a central point.

Linear bearing cutting platform.

Automatically returning blade guard.

Blades (H.S.S M2 100mm OD x 22mm ID x 0.50mm thick x 300 tooth.)

Small tool kit provided for routine maintenance.

CE approved.

Weight. 26Kg. ( 57.2 lbs ).

Dimensions. 415 long x 280 wide x 270 high.

available in 110volts version.

Construction.

Parts finished in clear anodised aluminum with a stainless steel cladding.
